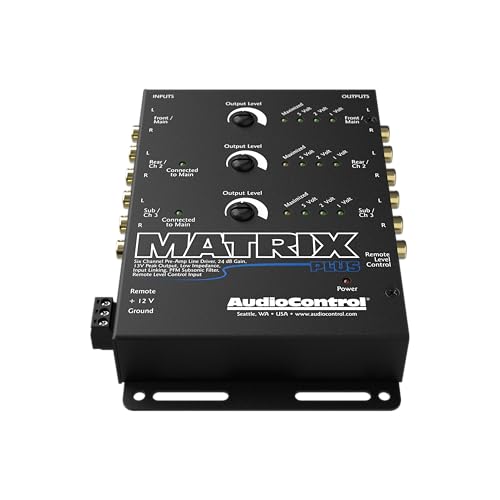

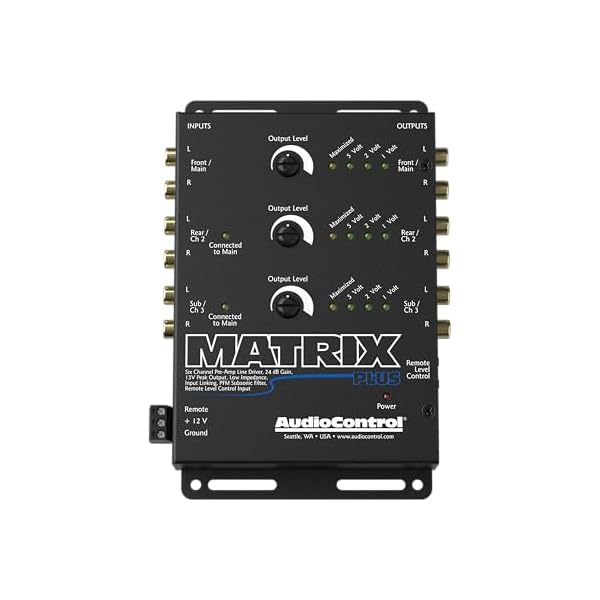

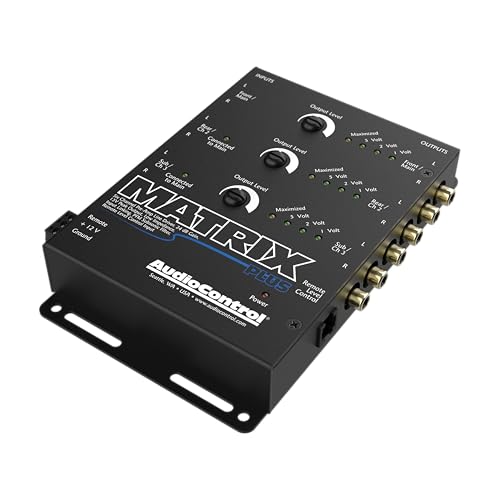

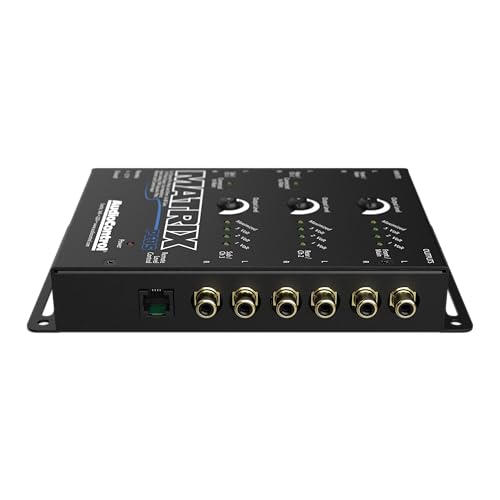

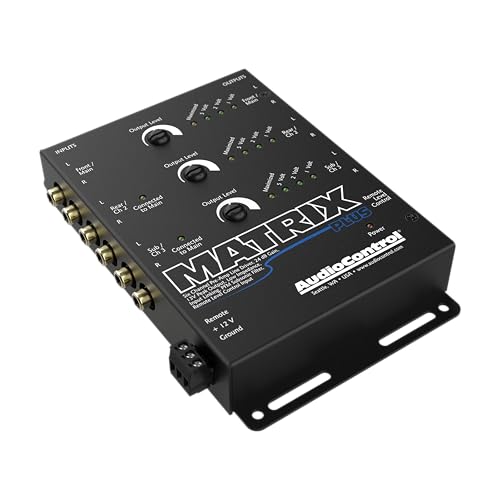

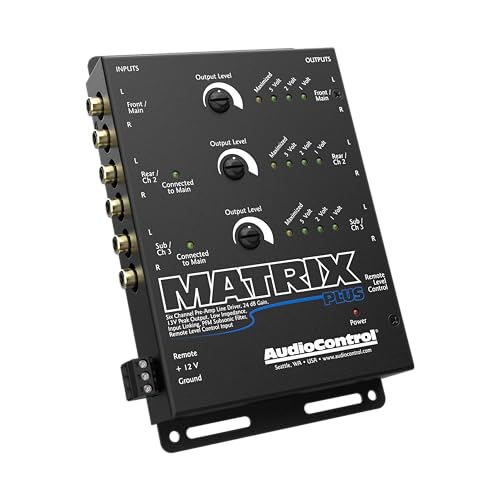

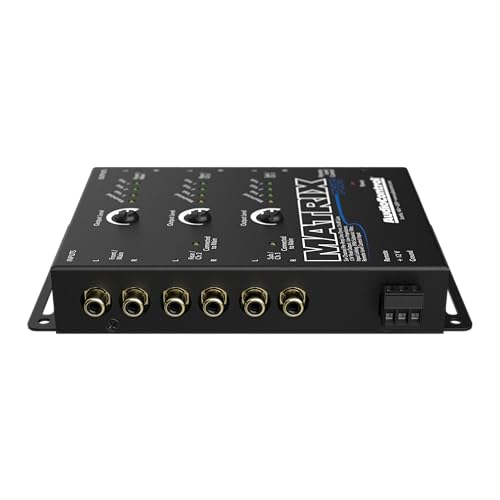

AudioControl Matrix Plus 6-Channel High Voltage Car Audio Line Driver

AudioControl created the MATRIX PLUS six channel line driver with one goal in mind: to make your car audio system sound better. Modern car stereos boast many features but in many cases have rather low pre-amp outputs, especially at low levels. Turn your stereo to a normal volume level, send the signal through a 20-foot cable, and your amps may end up with very little audio signal resulting in weak sound. Equipped with 24 dB of gain, which can increase pre-amp signal levels up to 9.5 volts RMS/13 volts peak, the MATRIX PLUS line driver will transform your audio system. When integrating multi-media and video games or for driving dozens of amplifiers the MATRIX PLUS line driver gives your system a boost. With multiple sources, like video, the MATRIX PLUS level matches the different volume levels so switching between them is seamless. For SPL vehicles, the internal linking system of the Matrix means that two channels of input can drive all six outputs and each output can drive up to seven amplifiers. The MATRIX PLUS line driver features an optional dash control input which facilitates remote control of pre-amp signal levels. This makes the MATRIX PLUS line driver an ideal controller for overall system master volume or subwoofer levels. Let the AudioControl’s MATRIX PLUS put your system into high gear.

𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗹𝗲 𝘄𝗶𝘁𝗵 𝗺𝗼𝘀𝘁 𝘃𝗲𝗵𝗶𝗰𝗹𝗲𝘀’ 𝗢𝗘𝗠 𝗮𝘂𝗱𝗶𝗼 𝘀𝘆𝘀𝘁𝗲𝗺𝘀: Features three sets of balanced differential line-level inputs and three sets of low impedance line-level outputs for integration with your existing audio system.
𝟲-𝗰𝗵𝗮𝗻𝗻𝗲𝗹 𝗹𝗶𝗻𝗲 𝗱𝗿𝗶𝘃𝗲𝗿: Boosts weak factory radio signals up to 13V peak (9.5V RMS) @ 20k ohms for downstream amplifiers, subwoofers, and processors. Maximum output voltage 13V peak (9.5V RMS) @ 14.4V.
𝗨𝗹𝘁𝗿𝗮-𝗹𝗼𝘄 𝗱𝗶𝘀𝘁𝗼𝗿𝘁𝗶𝗼𝗻: Provides crisp, clean sound at
𝗖𝗼𝗻𝗳𝗼𝗿𝗺𝗮𝗹𝗹𝘆 𝗰𝗼𝗮𝘁𝗲𝗱 𝗽𝗿𝗶𝗻𝘁𝗲𝗱 𝗰𝗶𝗿𝗰𝘂𝗶𝘁 𝗯𝗼𝗮𝗿𝗱 (𝗣𝗖𝗕): Resists vibrations and protects against the elements for long-lasting use.
𝗣𝗿𝗼𝗴𝗿𝗮𝗺𝗺𝗮𝗯𝗹𝗲 𝗳𝗿𝗲𝗾𝘂𝗲𝗻𝗰𝘆 𝗺𝗮𝘁𝗰𝗵 (𝗣𝗙𝗠) 𝘀𝘂𝗯𝘀𝗼𝗻𝗶𝗰 𝗳𝗶𝗹𝘁𝗲𝗿: Eliminates speaker damage and wasted amplifier power (18 dB/octave at 33Hz).
𝗩𝗮𝗿𝗶𝗮𝗯𝗹𝗲 𝘀𝘁𝗲𝗿𝗲𝗼 𝗴𝗮𝗶𝗻 𝗰𝗼𝗻𝘁𝗿𝗼𝗹𝘀: Allows you to adjust the output signals up to +24dB.
𝗢𝗻𝗯𝗼𝗮𝗿𝗱 𝗟𝗘𝗗 𝘃𝗼𝗹𝘁𝗮𝗴𝗲 𝗶𝗻𝗱𝗶𝗰𝗮𝘁𝗼𝗿𝘀: Alert you to optimal and maximized output voltages for each channel.
𝗦𝗲𝗹𝗲𝗰𝘁𝗮𝗯𝗹𝗲 𝗴𝗿𝗼𝘂𝗻𝗱 𝗶𝘀𝗼𝗹𝗮𝘁𝗶𝗼𝗻: Choose from common, ISO (default) or 200 ohms for flexibility in a variety of applications where ground loop noise may be present. A Phoenix style plug terminal block makes connections and removal easy.
𝗢𝗽𝘁𝗶𝗼𝗻𝗮𝗹 𝗱𝗮𝘀𝗵 𝗿𝗲𝗺𝗼𝘁𝗲: Control master volume and subwoofer output levels from the front seats (ACR-1 sold separately).
𝗖𝗼𝗺𝗽𝗮𝗰𝘁 𝘀𝗶𝘇𝗲: Transform your audio system without taking up extra space (8.7″ x 6.7″ x 1.15″, 2.25 lbs).
