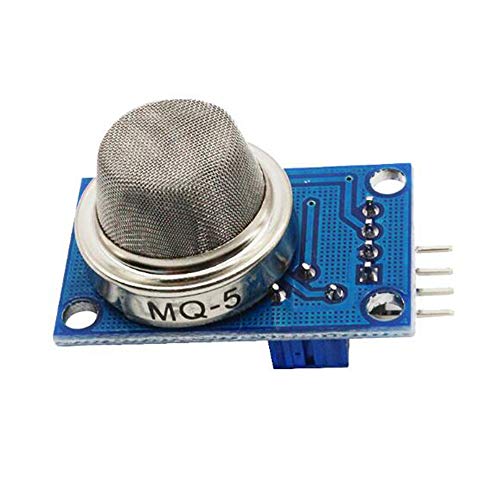

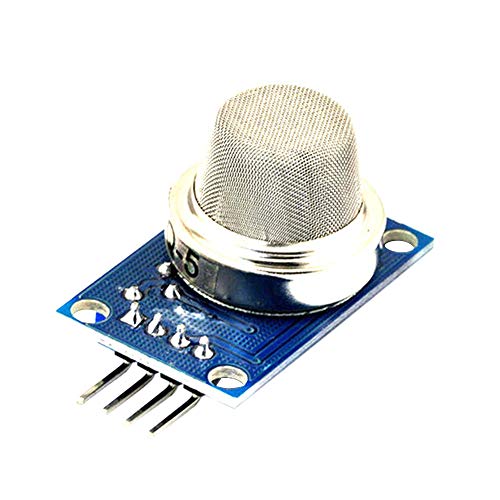

2 Pack MQ-5 LPG Gas City Sensor Module

Sensitive material MQ-5 gas sensor is used to clean the air in the lower conductivity of tin dioxide (SnO2). When there is the environment in which the combustible gas sensor , conductivity sensor with increasing concentration of combustible gases in air increases . Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal. MQ-5 gas sensor of high butane , propane, methane sensitivity, methane and propane can be better taken into account. This sensor can detect a variety of combustible gases, especially natural gas , is a low-cost sensor for a variety of applications .

MQ-5 Liquefied Gas , Methane, Coal Gas, LPG Dioxide Gas Sensor
Input Voltage : DC5V & Power consumption ( current ): 150mA & DO output: TTL digital 0 and 1 ( 0.1 and 5V) & AO output:0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V
Special note: After the sensor is powered , needs to warm up around 20S, measured data was stable , heat sensor is a normal phenomenon , because the internal heating wire , if hot is not normal .
Size: 32(L)x20(W)x22(H)mm/1.26″x0.79″x0.76″
Package Include: 2PCS MQ-5 Sensor Module
